Voltique Designer

Features Voltique Designer

Do you want to quickly sketch an electrical circuit like you would on a piece of paper?
Do you also want to be able to analyse the circuit and calculate currents and voltages?

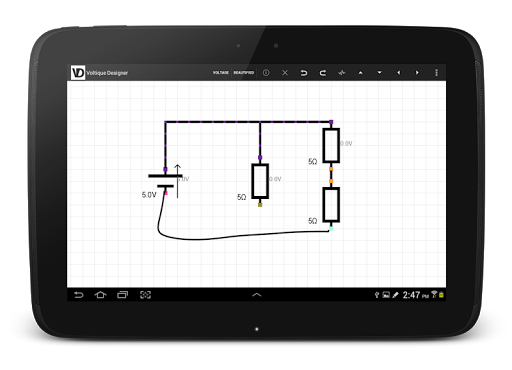

Then Voltique is for you.Voltique is a circuit sketching app that allows you to draw electrical circuits on the touch screen in the same way you would do on a piece of paper.
Voltique recognises the circuit components and tries to analyses the circuit as you draw it.

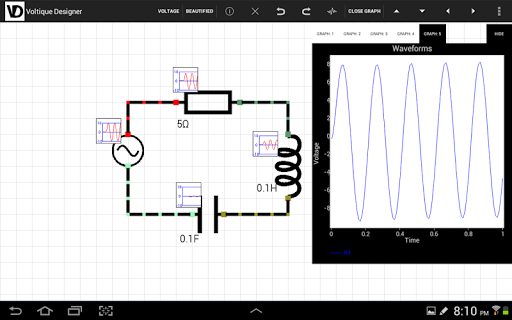

The circuit analysis is backed by a powerful SPICE engine which allows complex analysis beyond DC analysis.Voltique also has the ability to recognise and analyse subcircuits such as Schmitt triggers, amplifiers, bridge rectifiers and Darlington pairs.
This functionality can also help beginners by identifying short circuits and merging groups of resistors, capacitors and inductors.
